Upright Double Door (2-Module) Gastronorm Freezer (PNX-CNG-200 Series)

1 / 6

+43°C Tropical Ambient

Tested for stable performance in tropical conditions up to 43°C

-22°C to -18°C

Freezer operating temperature range

EU-Compliant

Meets EC 1223/2009 cosmetic regulation

Removable Gaskets

Easy-to-clean, dirt-repellent door seals you can replace yourself

Stainless Evap Cover

Stainless steel cover protects the evaporator from impact and corrosion

Hygienic Handle

Specially pressed handle with no crevices for food-safe operation

Easy-Clean Interior

Curved, seamless interior body for fast cleaning and HACCP compliance

Anti-Condensation

Cable-type heating resistance in the door frame prevents condensation

Self-Closing 90°

Zamak hinges with 90° self-closing action — doors return on their own

60mm Robust Body

60mm thick polyurethane insulation with 40 kg/m³ density for energy efficiency

R-290A Refrigerant

CFC-free, low-GWP natural refrigerant for environmentally responsible cooling

Built-in LED Light

High performance built-in LED lighting for premium product visibility

Monoblock Cooling

Changeable complete monoblock cooling group — easier service and replacement

At a glance

Origin:🇹🇷 Türkiye

Min order:1 pcs

Sample:Not available

Customization:Logo / Packaging / Color

Upright Gastronorm Freezers

Upright Double Door (2-Module) Gastronorm Freezer (PNX-CNG-200 Series)

Name: Upright Double Door (2-Module) Gastronorm Freezer (PNX-CNG-200 Series)
SKU: INT-PNX-CNG-DOUBLE
Availability: InStock

Professional commercial upright deep-freeze. 2-module Gastronorm-compatible deep-freeze upright freezer (1600L). Available with standard or monoblock cooling.

Built in a Tuzla (Istanbul) factory with AISI 304 stainless-steel exterior and interior, R-290A natural refrigerant (CFC-free, low-GWP), and 60mm polyurethane insulation at 40 kg/m³ density.

Operating temperature range: -22°C to -18°C deep-freeze, tested for stable performance in tropical ambient up to +43°C.

Monoblock variants feature a complete changeable cooling unit — the entire compressor + evaporator + condenser assembly can be swapped out as a single module, dramatically reducing service time.

Key features: - 2-module GN 2/1 compatible deep-freeze - -22°C to -18°C operating temperature - Standard or Monoblock cooling unit options - 2 full / 3 half / 4 half door layouts - 60mm polyurethane insulation - R-290A natural refrigerant - New built-in touch digital controller - High performance built-in LED light - Antibacterial-painted evaporator with copper pipes and aluminum panel - Specially pressed hygienic door handle - 90° self-closing doors with Zamak hinges - Anti-condensation cable heating in the door frame - Painted wire condenser, R-290 compatible - Easy-clean curved interior body - Stainless steel evaporator cover - 60mm thick solid body

Operates on 220/240V — I — 50/60Hz.

CE & SI certified. Made in Türkiye.

Variant

Options

Digital Controller

Mobility

Security

Additional Shelves

Don't see what you need? Sign in & submit a sourcing request →

Tropical AmbientYes

CertificationsCE

Country of OriginTurkey

Operating Temperature -22°C/-18°CYes

Warranty2 years

EU-CompliantYes

Removable Dirt-Repellent GasketsYes

Voltage220V

Stainless Steel Evaporator CoverYes

Power600 W

Hygienic Pressed Door HandleYes

Easy-Clean Curved InteriorYes

Body MaterialStainless Steel 304

Anti-Condensation Door FrameYes

Refrigerant GasR290

90° Self-Closing DoorsYes

60mm Thick Solid BodyYes

R-290A Eco-Friendly RefrigerantYes

Door Count4 doors

Interior Volume1600 L

Width1400 mm

Insulation Thickness60 mm

Built-in LED LightYes

Changeable Monoblock Cooling UnitYes

Variant comparison

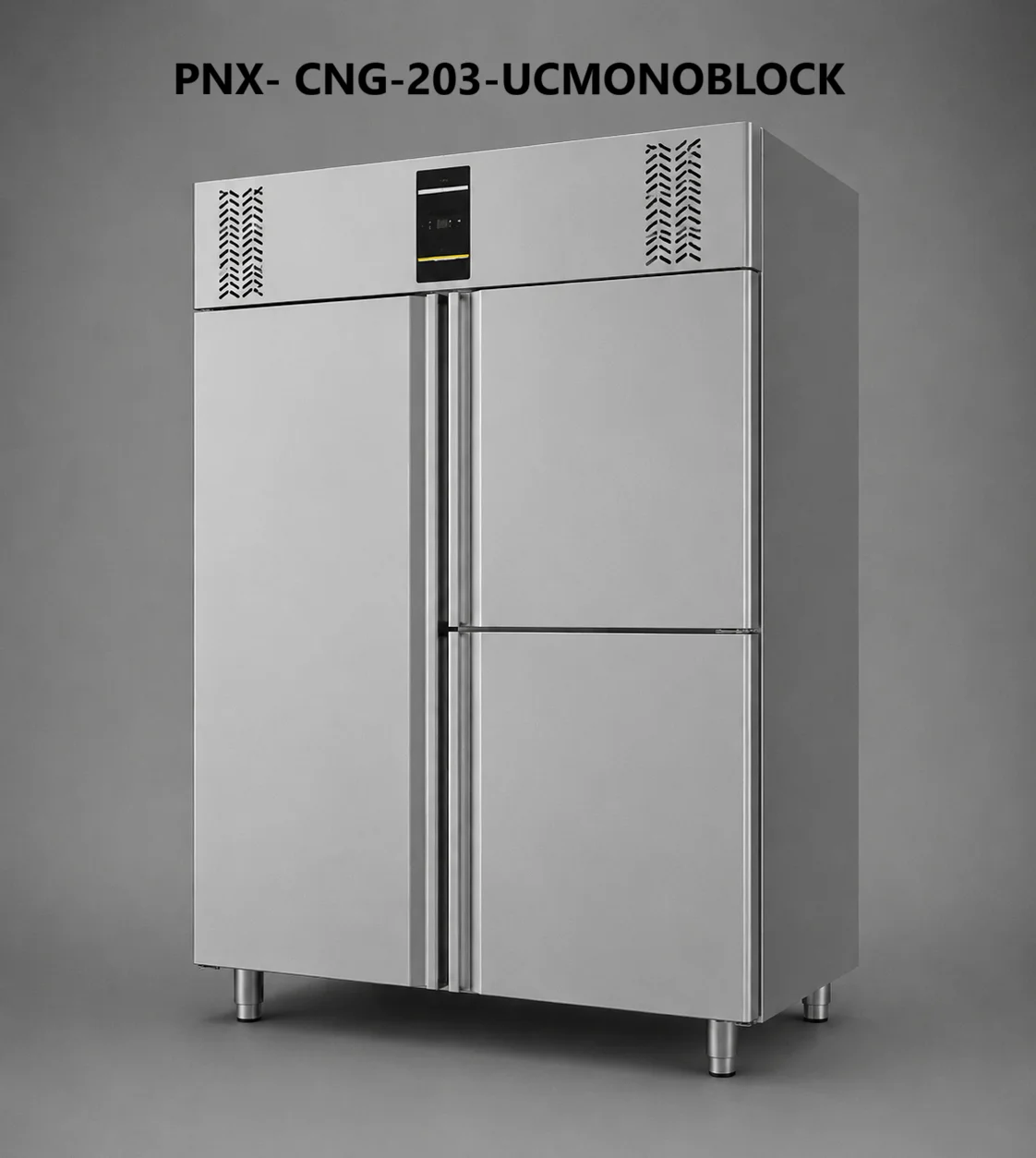

	PNX-CNG-202-UC 2 Full Doors, StandardINT-PNX-CNG-202-UC	PNX-CNG-204-UC 4 Half Doors, StandardINT-PNX-CNG-204-UC	PNX-CNG-203-UC-MONOBLOCK 1 Full + 2 HalfINT-PNX-CNG-203-UC-MONOBLOCK	PNX-CNG-204-UC-MONOBLOCK 4 Half DoorsINT-PNX-CNG-204-UC-MONOBLOCK	PNX-CNG-202-UC-MONOBLOCK 2 Full DoorsINT-PNX-CNG-202-UC-MONOBLOCK	PNX-CNG-203-UC 1 Full + 2 Half Doors, StandardINT-PNX-CNG-203-UC
Selling unit	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs
Net dimensions	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm
Net weight	172.00 kg	184.00 kg	180.00 kg	186.00 kg	174.00 kg	178.00 kg
Pack dimensions	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm
Pack weight	184.00 kg	196.00 kg	192.00 kg	198.00 kg	186.00 kg	190.00 kg

Additional details

Operating Temperature-22°C / -18°C (deep freeze)

Interior Volume1600 L

Width1400 mm

Power600 W

Voltage220-240V / 50Hz

RefrigerantR290A

Insulation Thickness60 mm

Insulation Density40 kg/m³

Body MaterialAISI 304 Stainless Steel

Country of OriginTürkiye

LED LightingHigh performance built-in LED

Cooling Unit OptionsStandard or changeable monoblock cooling unit
