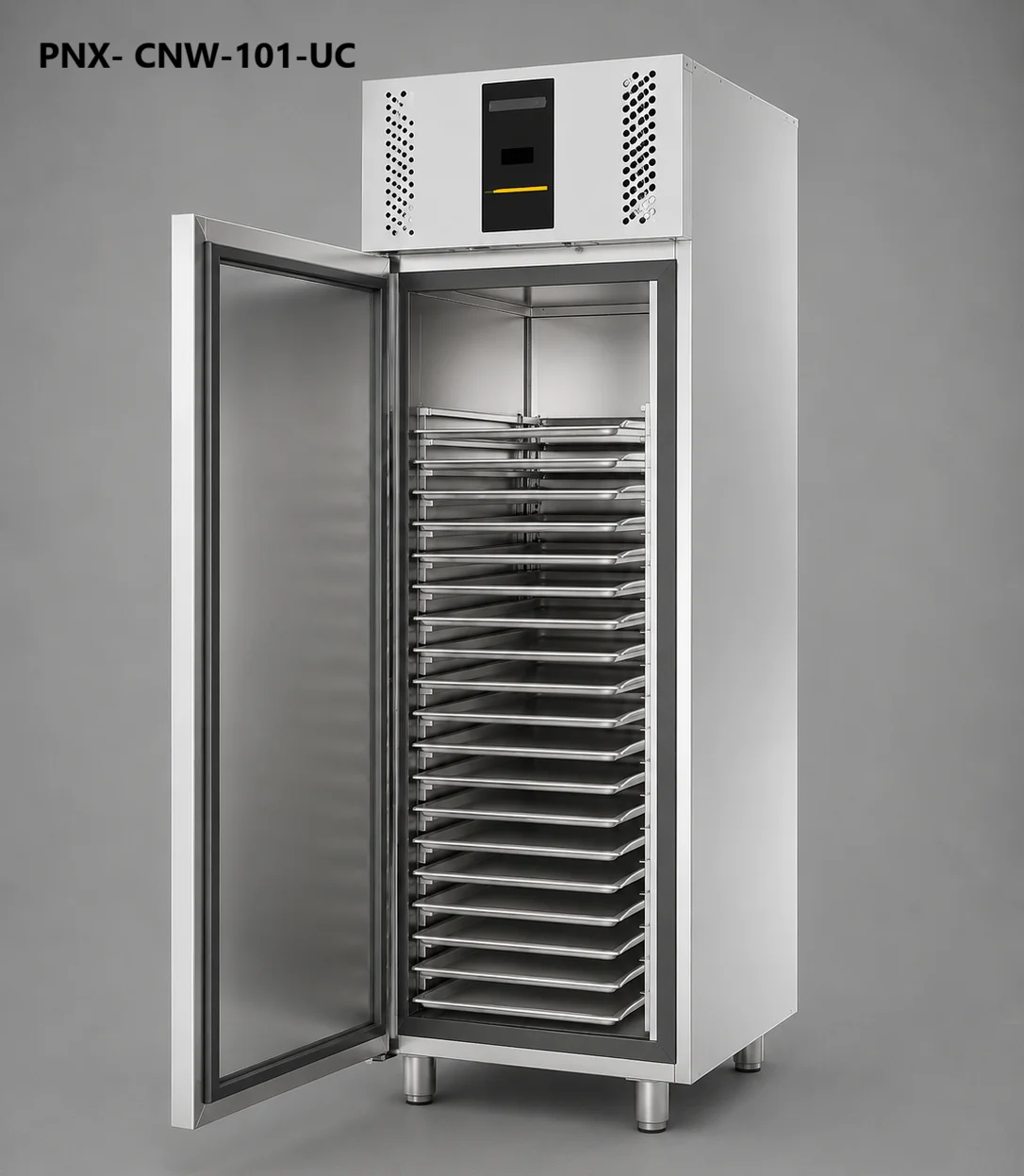

Upright Wide Patisserie Freezer 80×60 / 2×40×60 (PNX-CNW-100 Series)

1 / 4

+43°C Tropical Ambient

Tested for stable performance in tropical conditions up to 43°C

-22°C to -18°C

Freezer operating temperature range

EU-Compliant

Meets EC 1223/2009 cosmetic regulation

Removable Gaskets

Easy-to-clean, dirt-repellent door seals you can replace yourself

Stainless Evap Cover

Stainless steel cover protects the evaporator from impact and corrosion

Hygienic Handle

Specially pressed handle with no crevices for food-safe operation

Easy-Clean Interior

Curved, seamless interior body for fast cleaning and HACCP compliance

Anti-Condensation

Cable-type heating resistance in the door frame prevents condensation

Self-Closing 90°

Zamak hinges with 90° self-closing action — doors return on their own

60mm Robust Body

60mm thick polyurethane insulation with 40 kg/m³ density for energy efficiency

R-290A Refrigerant

CFC-free, low-GWP natural refrigerant for environmentally responsible cooling

Built-in LED Light

High performance built-in LED lighting for premium product visibility

Adjustable Tray Guides

Adjustable patisserie tray rails for flexible spacing between trays

Monoblock Cooling

Changeable complete monoblock cooling group — easier service and replacement

At a glance

Origin:🇹🇷 Türkiye

Min order:1 pcs

Sample:Not available

Customization:Logo / Packaging / Color

Upright Pastry Freezers

Upright Wide Patisserie Freezer 80×60 / 2×40×60 (PNX-CNW-100 Series)

Name: Upright Wide Patisserie Freezer 80×60 / 2×40×60 (PNX-CNW-100 Series)
SKU: INT-PNX-CNW-SINGLE
Availability: InStock

Professional commercial upright deep-freeze. Wide single-module patisserie deep-freeze (740×975mm) for 80×60 cm trays OR 2×40×60 cm configurations — 40 trays capacity. Standard or monoblock options.

Built in a Tuzla (Istanbul) factory with AISI 304 stainless-steel exterior and interior, R-290A natural refrigerant (CFC-free, low-GWP), and 60mm polyurethane insulation at 40 kg/m³ density.

Operating temperature range: -22°C to -18°C deep-freeze, tested for stable performance in tropical ambient up to +43°C.

Monoblock variants feature a complete changeable cooling unit — the entire compressor + evaporator + condenser assembly can be swapped out as a single module, dramatically reducing service time.

Key features: - 80×60 cm OR 2×40×60 cm tray deep-freeze — 40 trays - Wide body — 975mm depth - Adjustable patisserie tray guides - -22°C to -18°C operating temperature - Standard or Monoblock cooling options - 60mm polyurethane insulation - R-290A natural refrigerant - New built-in touch digital controller - High performance built-in LED light - Antibacterial-painted evaporator with copper pipes and aluminum panel - Specially pressed hygienic door handle - 90° self-closing doors with Zamak hinges - Anti-condensation cable heating in the door frame - Painted wire condenser, R-290 compatible - Easy-clean curved interior body - Stainless steel evaporator cover - 60mm thick solid body

Operates on 220/240V — I — 50/60Hz.

CE & SI certified. Made in Türkiye.

Variant

Options

Digital Controller

Mobility

Security

Additional Shelves

Don't see what you need? Sign in & submit a sourcing request →

Tropical AmbientYes

CertificationsCE

Country of OriginTurkey

Operating Temperature -22°C/-18°CYes

Warranty2 years

EU-CompliantYes

Removable Dirt-Repellent GasketsYes

Voltage220V

Stainless Steel Evaporator CoverYes

Power380 W

Hygienic Pressed Door HandleYes

Easy-Clean Curved InteriorYes

Body MaterialStainless Steel 304

Anti-Condensation Door FrameYes

Refrigerant GasR290

90° Self-Closing DoorsYes

60mm Thick Solid BodyYes

R-290A Eco-Friendly RefrigerantYes

Door Count2 doors

Interior Volume1000 L

Width740 mm

Insulation Thickness60 mm

Built-in LED LightYes

Adjustable Tray GuidesYes

Tray Capacity40 trays

Changeable Monoblock Cooling UnitYes

Variant comparison

	PNX-CNW-101-UC 1 Full Door, StandardINT-PNX-CNW-101-UC	PNX-CNW-102-UC-MONOBLOCK 2 Half DoorsINT-PNX-CNW-102-UC-MONOBLOCK	PNX-CNW-101-UC-MONOBLOCK 1 Full DoorINT-PNX-CNW-101-UC-MONOBLOCK	PNX-CNW-102-UC 2 Half Doors, StandardINT-PNX-CNW-102-UC
Selling unit	1 pcs	1 pcs	1 pcs	1 pcs
Net dimensions	74.0 × 97.5 × 208.0 cm	74.0 × 97.5 × 208.0 cm	74.0 × 97.5 × 208.0 cm	74.0 × 97.5 × 208.0 cm
Net weight	162.00 kg	165.00 kg	162.00 kg	165.00 kg
Pack dimensions	75.0 × 105.0 × 215.0 cm	75.0 × 105.0 × 215.0 cm	75.0 × 105.0 × 215.0 cm	75.0 × 105.0 × 215.0 cm
Pack weight	174.00 kg	177.00 kg	174.00 kg	177.00 kg

Additional details

Operating Temperature-22°C / -18°C (deep freeze)

Interior Volume1000 L

Width740 mm

Power380 W

Voltage220-240V / 50Hz

RefrigerantR290A

Insulation Thickness60 mm

Insulation Density40 kg/m³

Body MaterialAISI 304 Stainless Steel

Country of OriginTürkiye

LED LightingHigh performance built-in LED

Cooling Unit OptionsStandard or changeable monoblock cooling unit

Tray Capacity40 units of 40×60 cm trays

Alternative Tray Size80×60 cm or 2×40×60 cm configurations

Tray GuidesAdjustable patisserie tray guides
