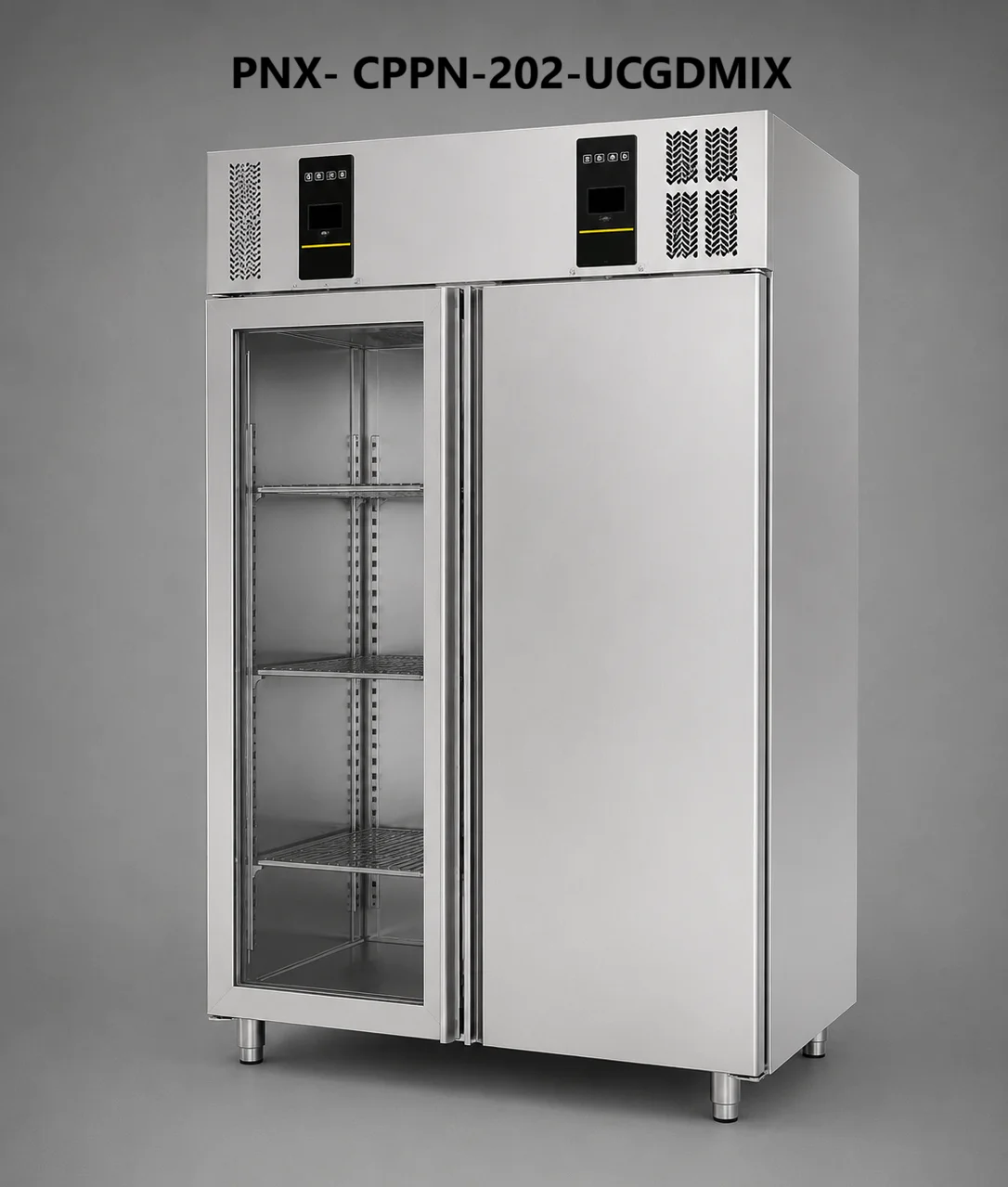

Upright Patisserie 40×60 Dual Temperature Refrigerator-Freezer (PNX-CPPN-MIX Series)

1 / 8

+43°C Tropical Ambient

Tested for stable performance in tropical conditions up to 43°C

-2°C to +8°C

Refrigerator operating temperature range

-22°C to -18°C

Freezer operating temperature range

EU-Compliant

Meets EC 1223/2009 cosmetic regulation

Removable Gaskets

Easy-to-clean, dirt-repellent door seals you can replace yourself

Stainless Evap Cover

Stainless steel cover protects the evaporator from impact and corrosion

Hygienic Handle

Specially pressed handle with no crevices for food-safe operation

Easy-Clean Interior

Curved, seamless interior body for fast cleaning and HACCP compliance

Anti-Condensation

Cable-type heating resistance in the door frame prevents condensation

Self-Closing 90°

Zamak hinges with 90° self-closing action — doors return on their own

60mm Robust Body

60mm thick polyurethane insulation with 40 kg/m³ density for energy efficiency

R-290A Refrigerant

CFC-free, low-GWP natural refrigerant for environmentally responsible cooling

Glass Door Display

Tempered insulated glass doors with high-capacity LED lighting for product visibility

Built-in LED Light

High performance built-in LED lighting for premium product visibility

Adjustable Tray Guides

Adjustable patisserie tray rails for flexible spacing between trays

Monoblock Cooling

Changeable complete monoblock cooling group — easier service and replacement

Dual Temperature

Combined refrigerator (-2/+8°C) and freezer (-22/-18°C) compartments in one cabinet

Dual Compressor

Two independent compressor units — one for refrigeration, one for freezing

At a glance

Origin:🇹🇷 Türkiye

Min order:1 pcs

Sample:Not available

Customization:Logo / Packaging / Color

Upright Pastry Refrigerators

Upright Patisserie 40×60 Dual Temperature Refrigerator-Freezer (PNX-CPPN-MIX Series)

Name: Upright Patisserie 40×60 Dual Temperature Refrigerator-Freezer (PNX-CPPN-MIX Series)
SKU: INT-PNX-CPPN-MIX
Availability: InStock

Professional commercial dual-temperature upright cabinet. Combined refrigerator-freezer for 40×60 cm pastry trays — 40 trays total capacity. TWO independent compressor units for refrigeration (-2/+8°C) and freezing (-22/-18°C). Standard or monoblock cooling options.

Built in a Tuzla (Istanbul) factory with AISI 304 stainless-steel exterior and interior, R-290A natural refrigerant (CFC-free, low-GWP), and 60mm polyurethane insulation at 40 kg/m³ density.

Dual temperature operation: refrigerator compartment maintains -2°C to +8°C, freezer compartment maintains -22°C to -18°C. Tested for stable performance in tropical ambient up to +43°C.

Monoblock variants feature a complete changeable cooling unit — the entire assembly can be swapped out as a single module, dramatically reducing service time.

Key features: - DUAL TEMPERATURE — patisserie refrigerator + freezer combined - TWO independent compressor units - -2/+8°C refrigerator + -22/-18°C freezer compartments - 40×60 cm patisserie tray capacity — 40 trays total - Adjustable patisserie tray guides - Standard or Monoblock cooling unit options - 60mm polyurethane insulation - R-290A natural refrigerant - New built-in touch digital controller - High performance built-in LED light - 90° self-closing doors with Zamak hinges - Anti-condensation cable heating in the door frame - Easy-clean curved interior body - Stainless steel evaporator cover - 60mm thick solid body

Operates on 220/240V — I — 50/60Hz.

CE & SI certified. Made in Türkiye.

Variant

Options

Digital Controller

Mobility

Security

Additional Shelves

Don't see what you need? Sign in & submit a sourcing request →

Tropical AmbientYes

CertificationsCE

Operating Temperature -2°C/+8°CYes

Country of OriginTurkey

Operating Temperature -22°C/-18°CYes

Warranty2 years

EU-CompliantYes

Removable Dirt-Repellent GasketsYes

Voltage220V

Stainless Steel Evaporator CoverYes

Power660 W

Hygienic Pressed Door HandleYes

Easy-Clean Curved InteriorYes

Body MaterialStainless Steel 304

Anti-Condensation Door FrameYes

Refrigerant GasR290

90° Self-Closing DoorsYes

60mm Thick Solid BodyYes

R-290A Eco-Friendly RefrigerantYes

Door Count4 doors

Interior Volume1600 L

Width1400 mm

Glass Door DisplayYes

Insulation Thickness60 mm

Built-in LED LightYes

Adjustable Tray GuidesYes

Tray Capacity40 trays

Changeable Monoblock Cooling UnitYes

Dual Temperature ZoneYes

Dual Compressor CoolingYes

Variant comparison

	PNX-CPPN-202-UCGD-MIX 1 Solid + 1 Glass, StandardINT-PNX-CPPN-202-UCGD-MIX	PNX-CPPN-203-UC-MIX-MONOBLOCK 1 Full + 2 HalfINT-PNX-CPPN-203-UC-MIX-MONOBLOCK	PNX-CPPN-203-UC-MIX 1 Full + 2 Half Doors, StandardINT-PNX-CPPN-203-UC-MIX	PNX-CPPN-204-UC-MIX-MONOBLOCK 4 Half DoorsINT-PNX-CPPN-204-UC-MIX-MONOBLOCK	PNX-CPPN-204-UC-MIX 4 Half Doors, StandardINT-PNX-CPPN-204-UC-MIX	PNX-CPPN-202-UC-MIX-MONOBLOCK 2 Full DoorsINT-PNX-CPPN-202-UC-MIX-MONOBLOCK	PNX-CPPN-202-UCGD-MIX-MONOBLOCK 1 Solid + 1 GlassINT-PNX-CPPN-202-UCGD-MIX-MONOBLOCK	PNX-CPPN-202-UC-MIX 2 Full Doors, StandardINT-PNX-CPPN-202-UC-MIX
Selling unit	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs
Net dimensions	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm	140.0 × 84.3 × 208.0 cm
Net weight	278.00 kg	271.00 kg	269.00 kg	276.00 kg	274.00 kg	264.00 kg	280.00 kg	262.00 kg
Pack dimensions	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm	141.0 × 85.0 × 215.0 cm
Pack weight	293.00 kg	286.00 kg	284.00 kg	291.00 kg	289.00 kg	279.00 kg	295.00 kg	277.00 kg

Additional details

Operating Temperature-2/+8°C (refrigeration) + -22/-18°C (freezer)

Interior Volume1600 L total

Width1400 mm

Power660 W

Voltage220-240V / 50Hz

RefrigerantR290A

Insulation Thickness60 mm

Insulation Density40 kg/m³

Body MaterialAISI 304 Stainless Steel

Country of OriginTürkiye

Cooling ConfigurationTWO independent compressor units (dual temperature)

Cooling Unit OptionsStandard or changeable monoblock

Tray Capacity40 units of 40×60 cm trays

Tray GuidesAdjustable patisserie tray guides
