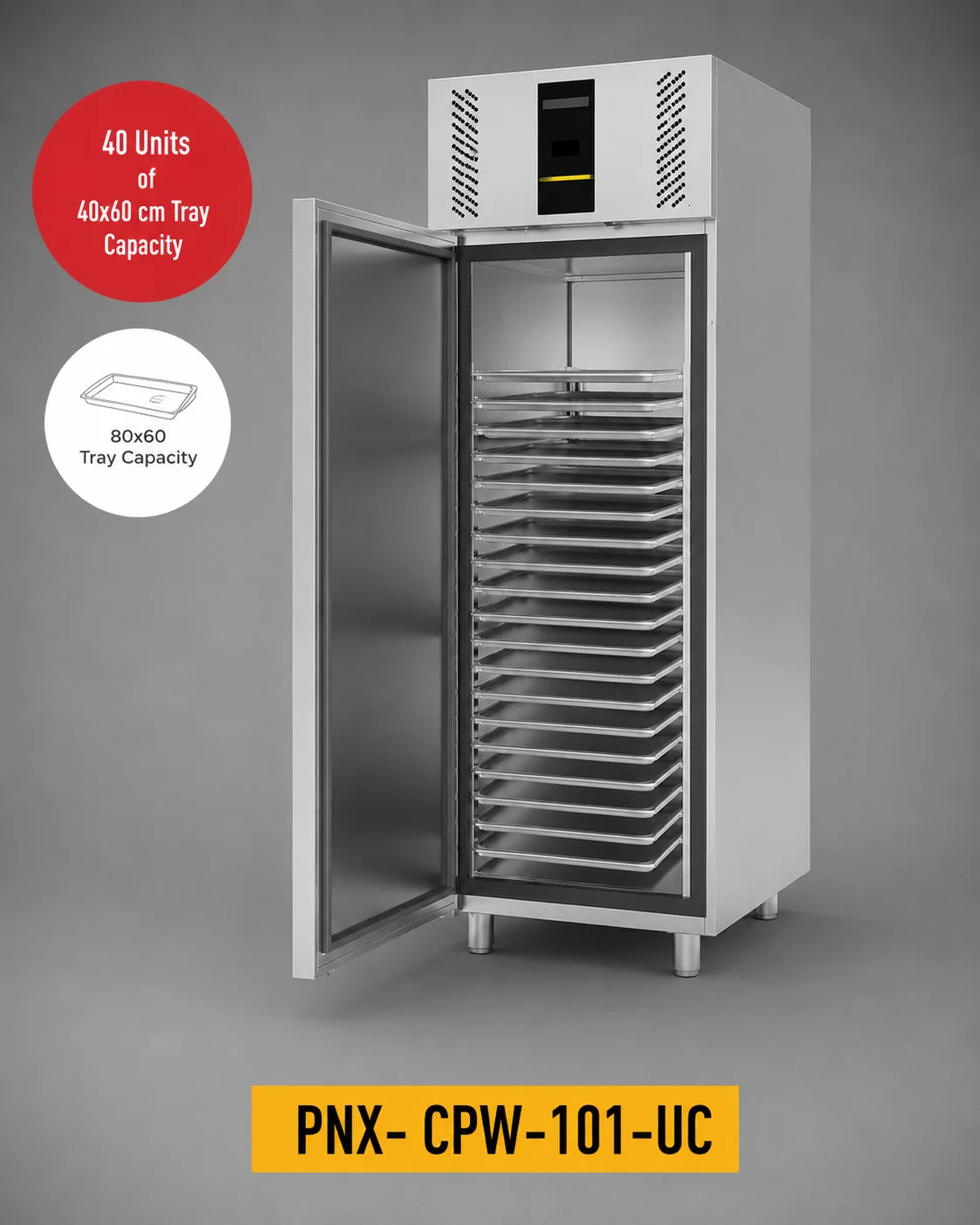

Upright Wide Patisserie Refrigerator 80×60 / 2×40×60 (PNX-CPW-100 Series)

1 / 4

+43°C Tropical Ambient

Tested for stable performance in tropical conditions up to 43°C

-2°C to +8°C

Refrigerator operating temperature range

EU-Compliant

Meets EC 1223/2009 cosmetic regulation

Removable Gaskets

Easy-to-clean, dirt-repellent door seals you can replace yourself

Stainless Evap Cover

Stainless steel cover protects the evaporator from impact and corrosion

Hygienic Handle

Specially pressed handle with no crevices for food-safe operation

Easy-Clean Interior

Curved, seamless interior body for fast cleaning and HACCP compliance

Anti-Condensation

Cable-type heating resistance in the door frame prevents condensation

Self-Closing 90°

Zamak hinges with 90° self-closing action — doors return on their own

60mm Robust Body

60mm thick polyurethane insulation with 40 kg/m³ density for energy efficiency

R-290A Refrigerant

CFC-free, low-GWP natural refrigerant for environmentally responsible cooling

Glass Door Display

Tempered insulated glass doors with high-capacity LED lighting for product visibility

Built-in LED Light

High performance built-in LED lighting for premium product visibility

Adjustable Tray Guides

Adjustable patisserie tray rails for flexible spacing between trays

At a glance

Origin:🇹🇷 Türkiye

Min order:1 pcs

Sample:Not available

Customization:Logo / Packaging / Color

Upright Pastry Refrigerators

Upright Wide Patisserie Refrigerator 80×60 / 2×40×60 (PNX-CPW-100 Series)

Name: Upright Wide Patisserie Refrigerator 80×60 / 2×40×60 (PNX-CPW-100 Series)
SKU: INT-PNX-CPW-SINGLE
Availability: InStock

Professional commercial upright refrigerator. Wide single-module patisserie refrigerator (740×975mm) designed for 80×60 cm trays OR 2×40×60 cm tray configurations — holds 40 trays. Premium pastry production capacity.

Built in a Tuzla (Istanbul) factory with AISI 304 stainless-steel exterior and interior, R-290A natural refrigerant (CFC-free, low-GWP), and 60mm polyurethane insulation at 40 kg/m³ density.

Operating temperature range: -2°C to +8°C (+4/+8°C for glass door models), tested for stable performance in tropical ambient up to +43°C.

Key features: - 80×60 cm OR 2×40×60 cm tray compatible — 40 trays capacity - Wide body — 975mm depth - 1 full / 2 half door configurations - Optional glass door variants - Adjustable patisserie tray guides - 60mm polyurethane insulation - R-290A natural refrigerant - New built-in touch digital controller - High performance built-in LED light - Antibacterial-painted evaporator with copper pipes and aluminum panel - Specially pressed hygienic door handle - 90° self-closing doors with Zamak hinges - Anti-condensation cable heating in the door frame - Painted wire condenser, R-290 compatible - Easy-clean curved interior body - Stainless steel evaporator cover - 60mm thick solid body

Operates on 220/240V — I — 50/60Hz.

CE & SI certified. Made in Türkiye.

Variant

Options

Digital Controller

Mobility

Security

Additional Shelves

Don't see what you need? Sign in & submit a sourcing request →

Tropical AmbientYes

CertificationsCE

Operating Temperature -2°C/+8°CYes

Country of OriginTurkey

Warranty2 years

EU-CompliantYes

Removable Dirt-Repellent GasketsYes

Voltage220V

Stainless Steel Evaporator CoverYes

Power380 W

Hygienic Pressed Door HandleYes

Easy-Clean Curved InteriorYes

Body MaterialStainless Steel 304

Anti-Condensation Door FrameYes

Refrigerant GasR290

90° Self-Closing DoorsYes

60mm Thick Solid BodyYes

R-290A Eco-Friendly RefrigerantYes

Door Count2 doors

Interior Volume1000 L

Width740 mm

Glass Door DisplayYes

Insulation Thickness60 mm

Built-in LED LightYes

Adjustable Tray GuidesYes

Tray Capacity40 trays

Variant comparison

	PNX-CPW-101-UC-GD 1 Full Glass DoorINT-PNX-CPW-101-UC-GD	PNX-CPW-101-UC 1 Full DoorINT-PNX-CPW-101-UC	PNX-CPW-102-UC-GD 2 Half Glass DoorsINT-PNX-CPW-102-UC-GD	PNX-CPW-102-UC 2 Half DoorsINT-PNX-CPW-102-UC
Selling unit	1 pcs	1 pcs	1 pcs	1 pcs
Net dimensions	74.0 × 97.5 × 208.0 cm	74.0 × 97.5 × 208.0 cm	74.0 × 97.5 × 208.0 cm	74.0 × 97.5 × 208.0 cm
Net weight	168.00 kg	160.00 kg	173.00 kg	163.00 kg
Pack dimensions	75.0 × 109.5 × 215.0 cm	75.0 × 109.5 × 215.0 cm	75.0 × 109.5 × 215.0 cm	75.0 × 109.5 × 215.0 cm
Pack weight	180.00 kg	172.00 kg	185.00 kg	175.00 kg

Additional details

Cooling Temperature-2/+8°C (solid doors) / +4/+8°C (glass doors)

Interior Volume1000 L

Width740 mm

Power380 W

Voltage220-240V / 50Hz

RefrigerantR290A

Insulation Thickness60 mm

Insulation Density40 kg/m³

Body MaterialAISI 304 Stainless Steel

Country of OriginTürkiye

LED LightingHigh performance built-in LED

Tray Capacity40 units of 40×60 cm trays

Alternative Tray Size80×60 cm or 2×40×60 cm configurations

Tray GuidesAdjustable patisserie tray guides
