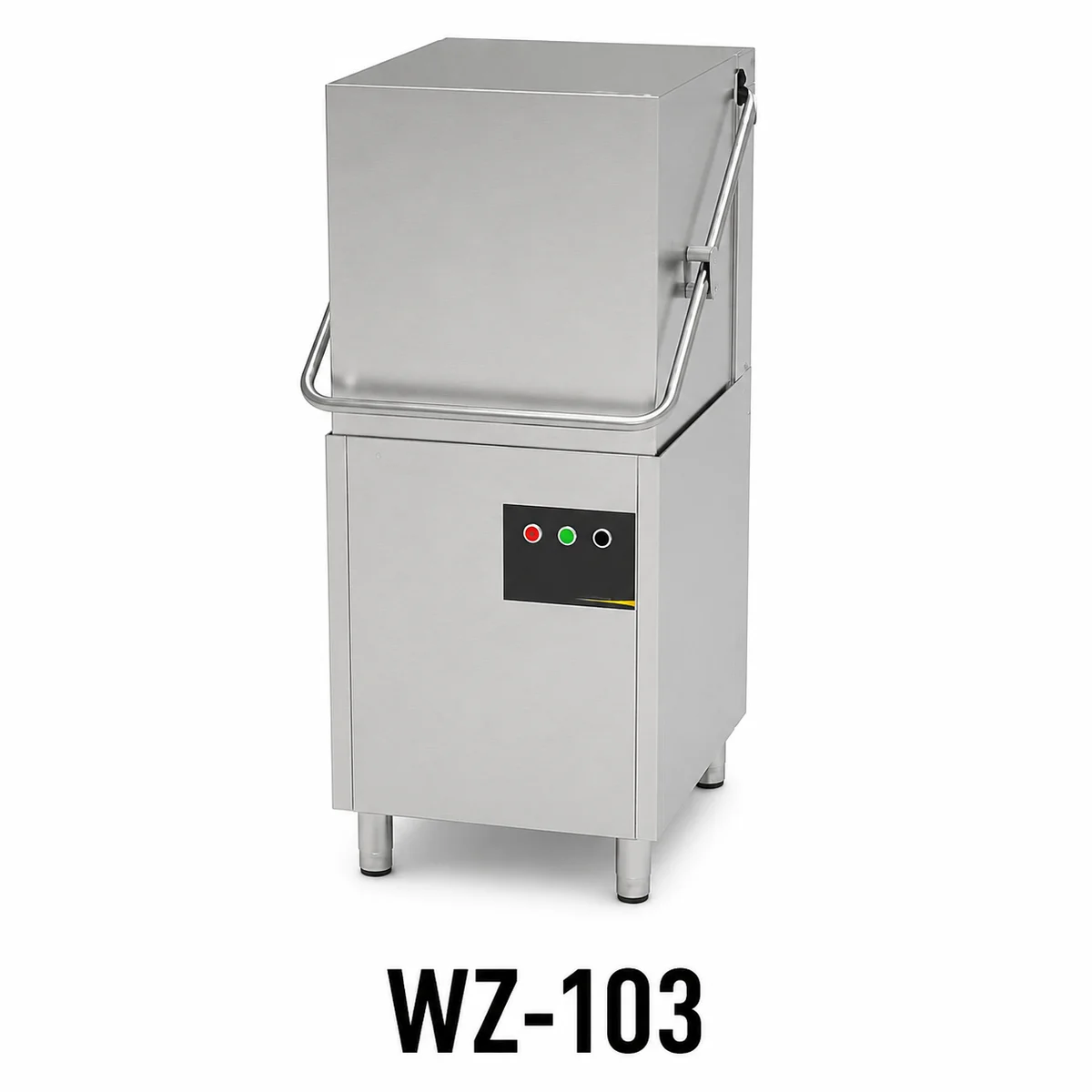

Pass-Through Hood-Type Dishwasher 1000 Dishes/Hour Tall (WZ-103 Series)

1 / 5

EU-Compliant

Meets EC 1223/2009 cosmetic regulation

Incolay Tank

Incolay-coated washing tank and boiler resistance — corrosion and limescale resistant

IPX4 Panel

Water-splash resistant control panel for wet-zone installations

At a glance

Origin:🇹🇷 Türkiye

Min order:1 pcs

Sample:Not available

Customization:Logo / Packaging / Color

Pass-Through Dishwashers

Pass-Through Hood-Type Dishwasher 1000 Dishes/Hour Tall (WZ-103 Series)

Name: Pass-Through Hood-Type Dishwasher 1000 Dishes/Hour Tall (WZ-103 Series)
SKU: INT-WZ-103
Availability: InStock

Professional commercial pass-through hood-type dishwasher. Available in 12 configurations (Standard / Drain Pump / Thermometer combinations × Standard / Rinsing Pump / Rinsing + Detergent Pump).

Key features: - Basket size: 50x50 cm, 2 basket capacity (suitable for pass-through line operation) - Washing capacity: 60 basket/hour (1000 dishes) - 2 wash programs: 90 sec / 180 sec - AISI 304 (18/10) stainless steel body, door and boiler tank - Incolay-coated washing tank and boiler resistance - IPX4 protected control panel - 65°C washing / 85°C rinsing water temperature - Low water consumption: 3.5 L per cycle - 5 litre rinsing water tank - Adjustable legs (0-6 cm) - Stainless steel washing tray filter - Chemical resistant rubber washing and rinsing hose - Adjustable dosing pumps (for Rinsing Pump / Detergent Pump models)

Variant codes explained: -D = with drain pump (for installations without gravity drainage), -BTT = with boiler & tank thermometers, -RP = with rinsing aid pump included, -RDP = with both rinsing and detergent pumps included.

CE certified. Made in Türkiye.

Variant

Options

Additional Wash Baskets (Optional)

External Dosing Pump (Optional, Page 116)

External Water Softener (Optional)

Don't see what you need? Sign in & submit a sourcing request →

CertificationsCE

Country of OriginTurkey

Warranty2 years

EU-CompliantYes

Voltage220V

Power650 W

Body MaterialStainless Steel 304 18/10

Width1450 mm

Incolay Coated Tank and BoilerYes

IPX4 Protected Control PanelYes

Wash Capacity per Hour60 baskets/hour

Basket Size50x50 cm

Variant comparison

	WZ-103-D (Drain Pump)INT-WZ-103-D	WZ-103-D-RDP (Drain + Rinsing + Detergent Pump)INT-WZ-103-D-RDP	WZ-103-BTT-D-RP (Termometre + Drain + Rinsing Pump)INT-WZ-103-BTT-D-RP	WZ-103-RDP (Rinsing + Detergent Pump)INT-WZ-103-RDP	WZ-103-BTT (Boiler and Tank Termometre)INT-WZ-103-BTT	WZ-103-BTT-RP (Termometre + Rinsing Pump)INT-WZ-103-BTT-RP	WZ-103-BTT-D (Termometre + Drain Pump)INT-WZ-103-BTT-D	WZ-103 (Standard)INT-WZ-103	WZ-103-BTT-D-RDP (Termometre + Drain + Rinsing + Detergent Pump)INT-WZ-103-BTT-D-RDP	WZ-103-RP (Rinsing Pump)INT-WZ-103-RP	WZ-103-D-RP (Drain + Rinsing Pump)INT-WZ-103-D-RP	WZ-103-BTT-RDP (Termometre + Rinsing + Detergent Pump)INT-WZ-103-BTT-RDP
Selling unit	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs	1 pcs
Net dimensions	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm	145.0 × 69.0 × 78.0 cm
Net weight	91.00 kg	92.00 kg	92.50 kg	91.00 kg	91.00 kg	91.50 kg	92.00 kg	90.00 kg	93.00 kg	90.50 kg	91.50 kg	92.00 kg
Pack dimensions	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm	163.0 × 71.0 × 77.0 cm
Pack weight	96.00 kg	97.00 kg	97.50 kg	96.00 kg	96.00 kg	96.50 kg	97.00 kg	95.00 kg	98.00 kg	95.50 kg	96.50 kg	97.00 kg

Additional details

Basket Size50x50 cm

Basket Capacity2 basket(s)

Washing Capacity60 basket/hour (1000 dishes)

Wash Programs2 programs (90 seconds / 180 seconds)

Wash Cycle Duration1.5 - 3 minutes

Washing Temperature65°C

Rinsing Temperature85°C

Water Consumption3.5 L per cycle

Rinsing Water Tank5 L

Voltage220-240V / 50Hz

Power650 W washing pump

Body MaterialAISI 304 (18/10) Stainless Steel

Tank CoatingIncolay-coated tank and boiler resistance

Control PanelIPX4 water-splash protected

Tray FilterAISI 304 Stainless Steel

Adjustable Legs10-15 cm

Country of OriginTürkiye
